Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Tên: | Màn hình cảm ứng máy thở AVEA | Ứng dụng: | Máy thở |
|---|---|---|---|
| Vật liệu: | Thủy tinh | Màu sắc: | Giải phóng mặt bằng |
| Tính năng: | Tương thích và mới | ||
| Làm nổi bật: | Carefusion Avea ventilator touch screen,Avea ventilator 12.1 inch screen,ventilator touch screen glass |
||

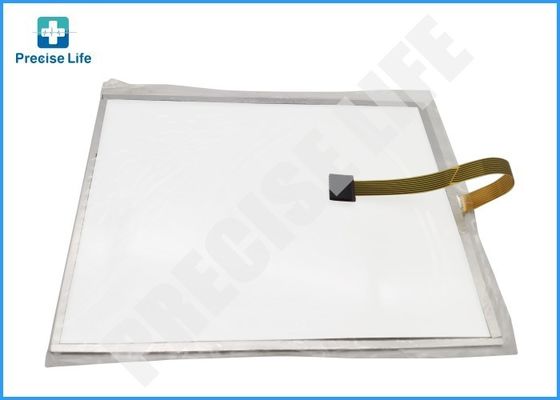

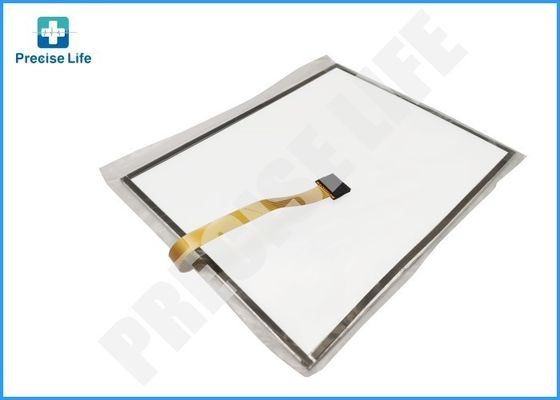

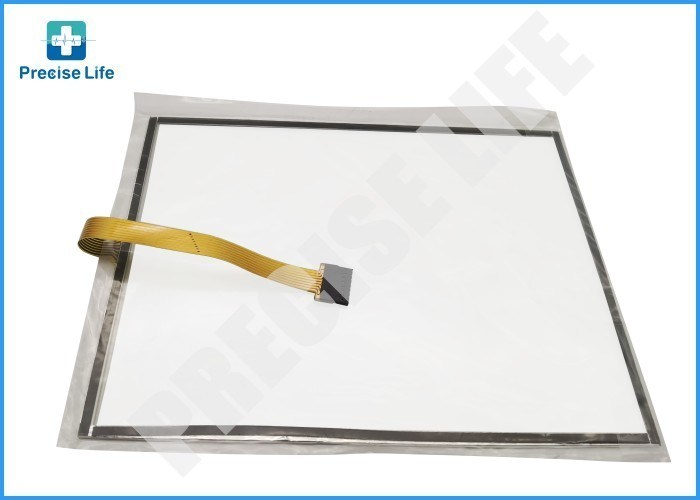

Carefusion Avea Touch screen 12.1 inch Avea ventilator touch screen glass
Description of ventilator parts:
The touch screen in conjunction with the LCD provides a set of software configurable soft keys. The software allows the keys to be context sensitive. The touch screen is a 12.1” analog resistive overlay on a piece of glass, which is placed over the LCD. It has a resolution of 1024x1024. Physically the touch screen, consists of two opposing transparent resistive layers separated by insulating spacers. Actuation brings the two opposing layers into electrical contact. The Y coordinate is determined by applying a voltage from top to bottom on the top resistive layer. This creates a voltage gradient across this layer.
The point of contact forms a voltage divider, which is read by the analog-to-digital converter. The X coordinate is determined by applying a voltage from left to right on the bottom resistive layer. Again this creates a voltage gradient and the point of contact forms a divider, which is read with an analog-todigital converter.
Specification of ventilator parts:
| Condition |
Compatible and new |
| Warranty |
1 year |
| Packing |
1 pcs per box |
| Color |
Clearance |
| Feature |
Reusable |
Reference OEM P/N:
Note: All brands name above for reference only!
